ABOUT THIS PRODUCT:

Heavy-Duty, Extra-Thick Vinyl Gym Floor Cover with Exclusive Ripple-Pattern Slip-Resistant Surface

Quantity	Price

Details

A Heavy-Duty, Extra-Thick Cover with Exclusive Ripple-Pattern Slip-Resistant Surface

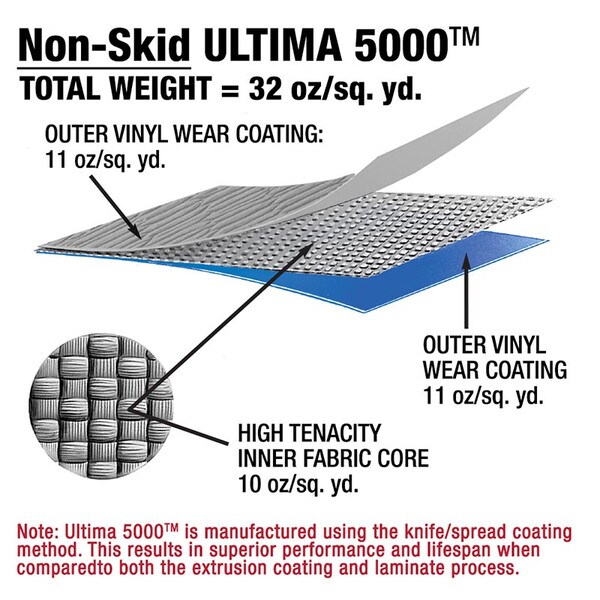

For the ultimate in gym floor protection, COVERMASTER® ULTIMA 5000™ is our thickest and most durable vinyl gym floor cover. Manufactured using a knife/spread coating process that permanently bonds liquid polymer to a high-tenacity woven polyester core, ULTIMA 5000™ forms a unified material engineered for repeated deployment without delamination.

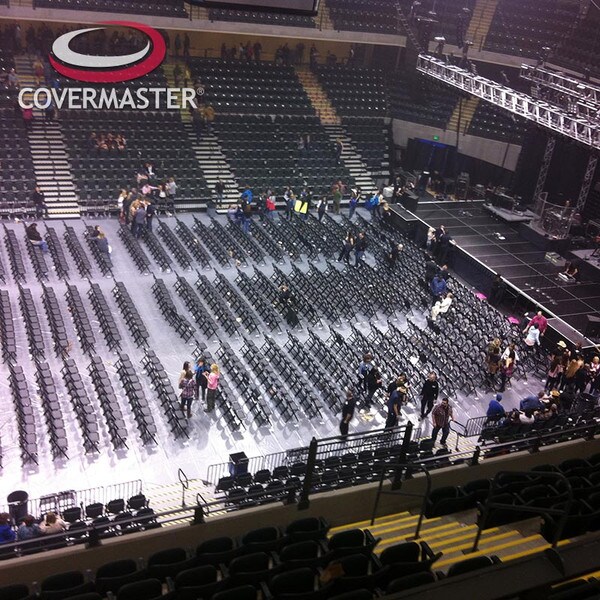

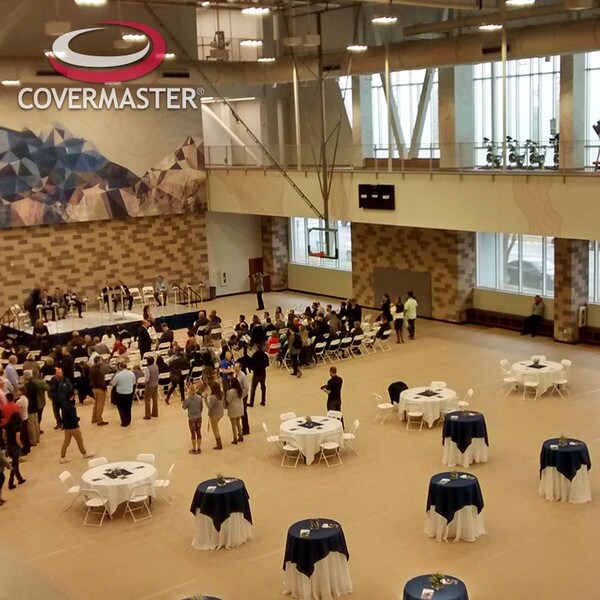

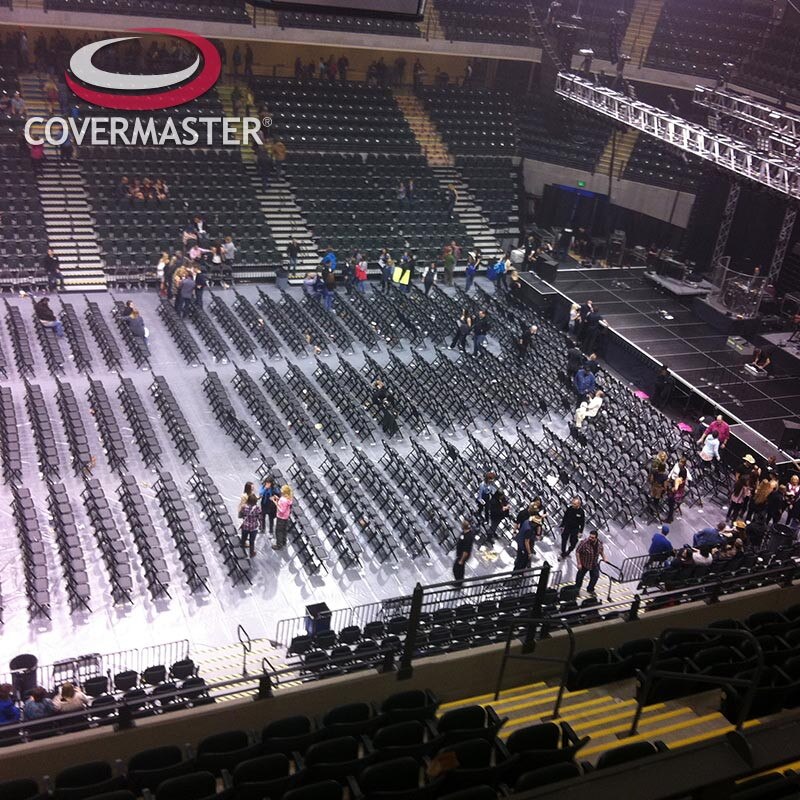

Designed for high-frequency use and suitable for all event types, ULTIMA 5000™ provides superior protection against potential damage to hardwood and other finished gym floor surfaces from chairs, tables, staging components, high heels, and equipment traffic. Recommended for facilities requiring unlimited annual deployments and maximum durability.

Key Features of ULTIMA 5000™

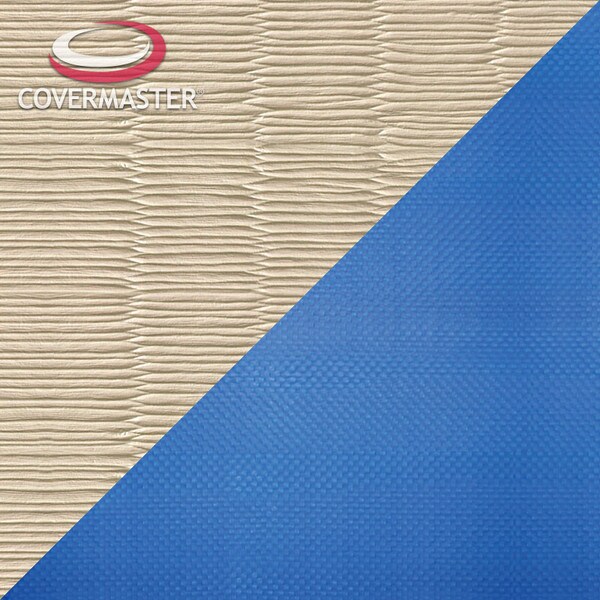

High-wearing decorative ripple patterned top surface
Thick outer wear coatings
Superior tear resistance
Designed for high frequency use
Can be used either side up
Suitable for any event

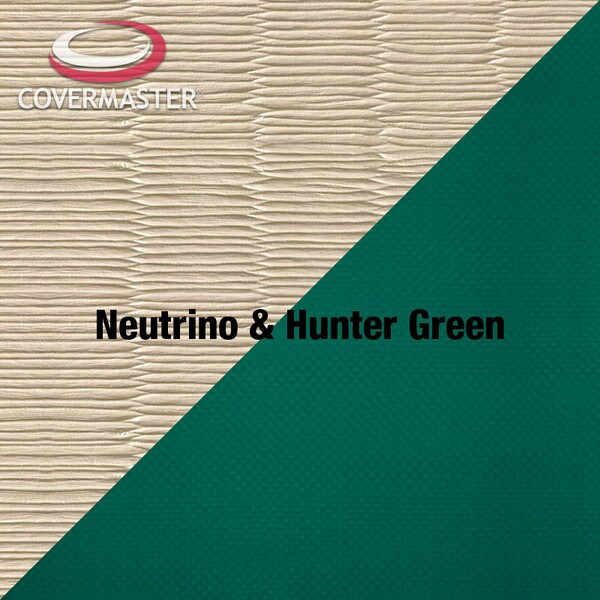

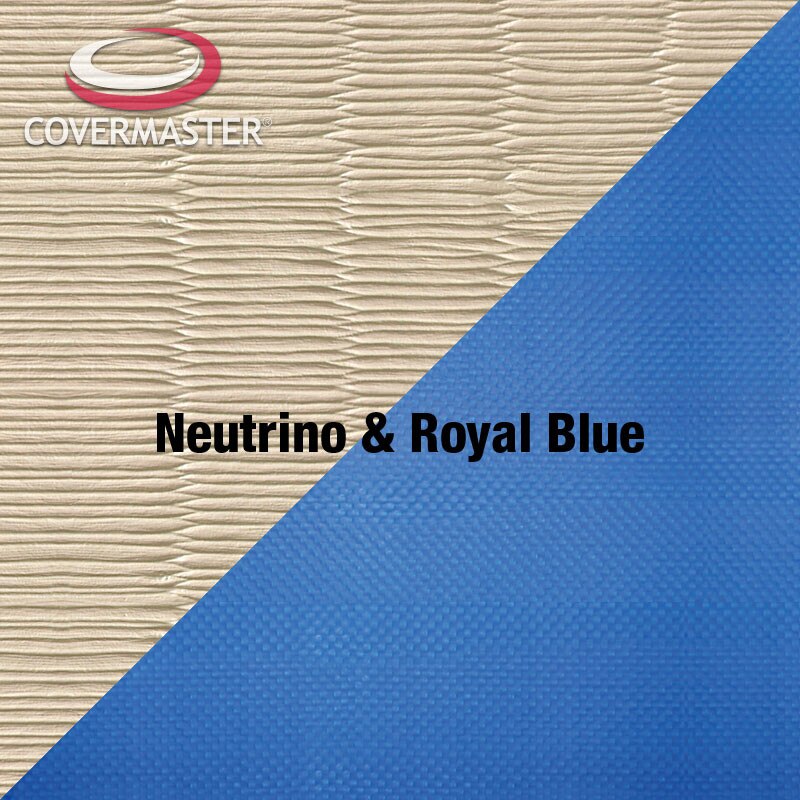

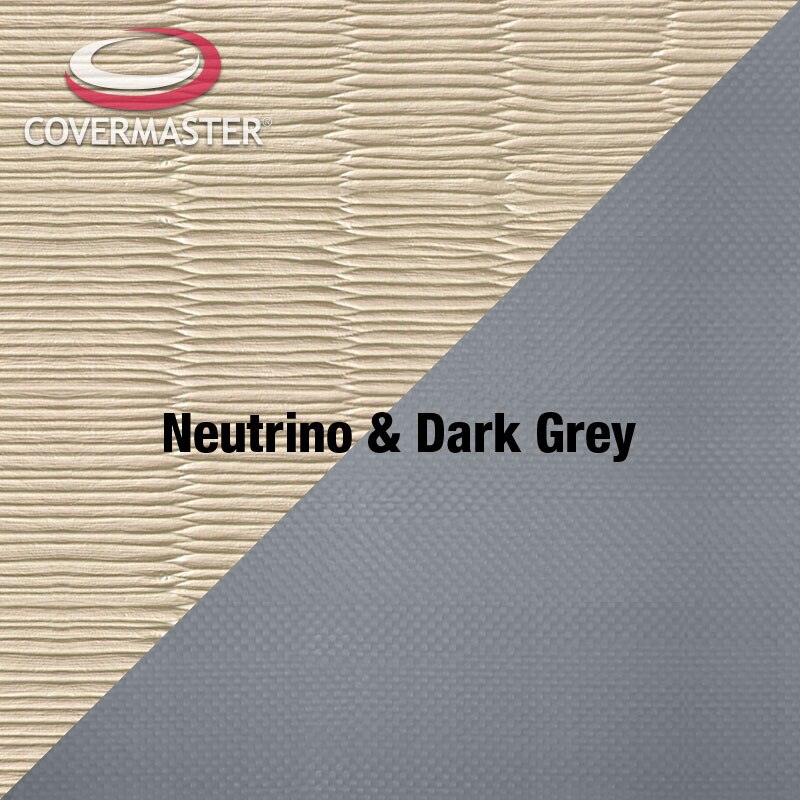

Available in single or dual color combinations
ADA compliant, anti-slip friction co-efficient rating of 1.80
20-Year Warranty

The pressure-applied polymer bonds permanently to the core, preventing delamination common in laminated fabrics and supporting long-term durability.

Performance & Protection

ULTIMA 5000™ is engineered for facilities that regularly host structured event programs requiring maximum durability. Its extra-thick multi-layer vinyl construction helps resist indentation, abrasion, and surface wear during recurring installations.

The exclusive ripple-pattern surface enhances slip resistance while maintaining a professional appearance appropriate for both formal ceremonies and high-traffic event environments.

Installation, Removal & Storage

ULTIMA 5000™ can be installed, removed, and stored using the ULTIMA SERIES COVERMATE II™ handling system, engineered to make deployment and storage easier and safer.

Ready to Protect Your Gym Floor?

Speak with a member of the COVERMASTER® Sales Team to determine if ULTIMA 5000™ is the right vinyl gym floor cover for your facility.
→ REQUEST A QUOTE

Specifications

ULTIMA 5000™ GYM FLOOR COVER MATERIAL

Material Properties	Value
Surface finish	Safety ripple pattern
Fabric core	Single layer, woven polyester
Filament size	1500 denier
Core weight	10 oz/sq.yd.
Weave count	30 x 30
Coating	P.V.C., knife coated process, not extrusion coated or laminate process
Total cover thickness	34 mils
Total cover weight	32oz/sq.yd.

Mechanical Properties	Value
Slip-resistant surface, ADA compliant	1.80 co-efficient of friction
Tensile strength	850 x 800 lbs.
Tear strength	200 x 180 lbs.
Fire resistance- Material must meet these 5 fire resistant standards	California Fire Marshall Underwriter Fire Protection Test National Fire Protection Association Connecticut Fire Marshall Class 1 Rating State of New York Class A rating
Cover-Gard	Material treated to resist odors and germs and to be rot and mildew resistant.
Construction	Material should be in sections 10 ft. wide. All seams thermally welded with a minimum 1" lap weld.
Warranty	A 20 year warranty covering materials and workmanship, equivalent to Covermaster Warranty Program, is required.
