Ultima 4000

SKU: U4000-STD
(0) No Reviews yet

ABOUT THIS PRODUCT:

A Heavyweight, Diamond Tread-Plate Pattern, Slip Resistant Cover

Details

A HEAVYWEIGHT, DIAMOND TREAD-PLATE PATTERN, SLIP RESISTANT COVER

* Diamond tread-plate pattern, anti-slip top surface
* Can be used either side up
*  Designed for high frequency use
* Suitable for any event

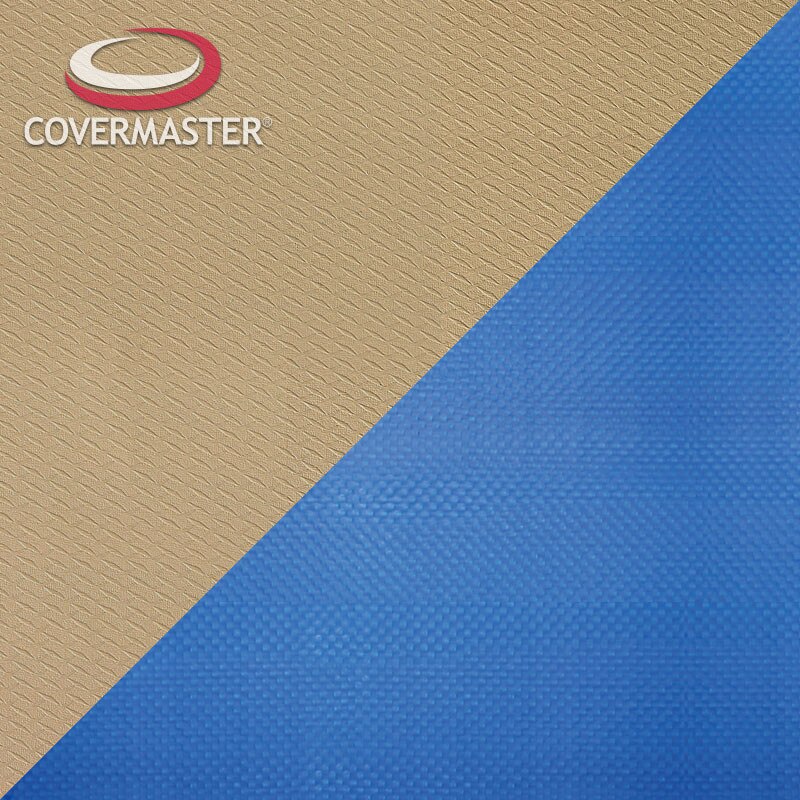

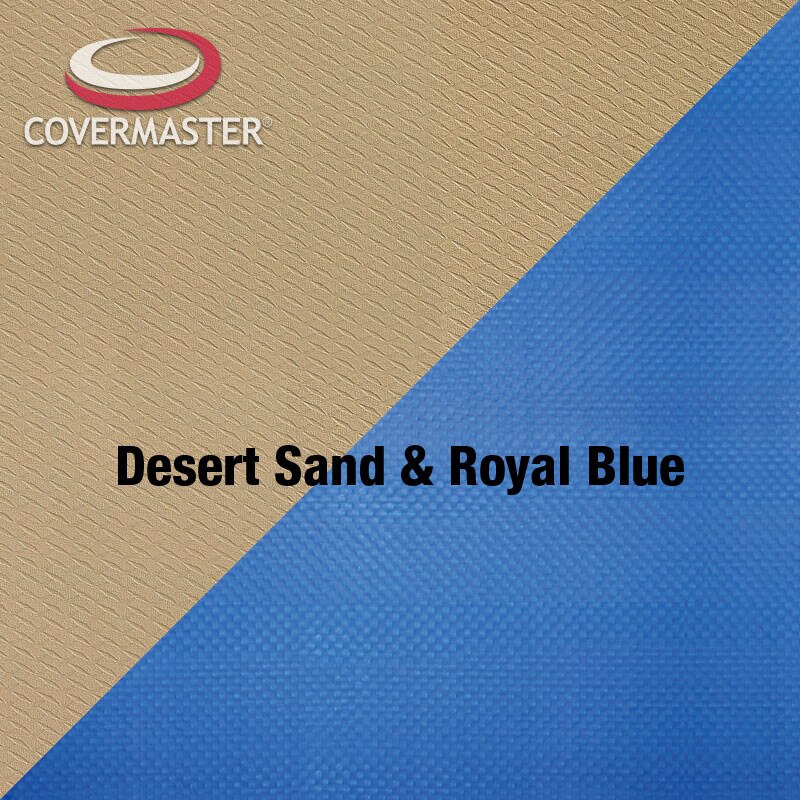

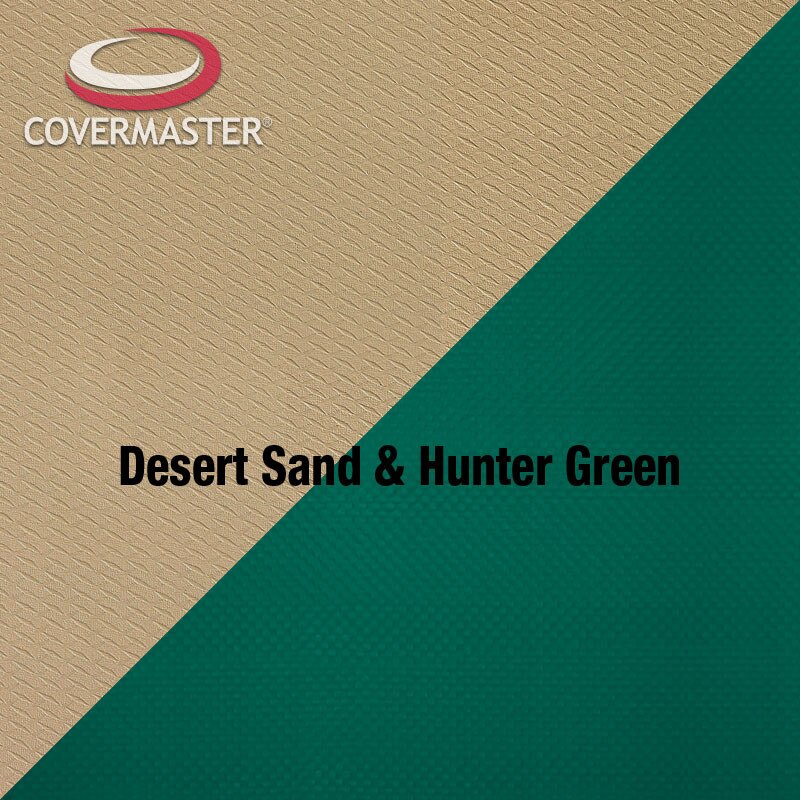

* In single or dual color combinations
* ADA compliant, anti-slip friction co-efficient rating of 0.61

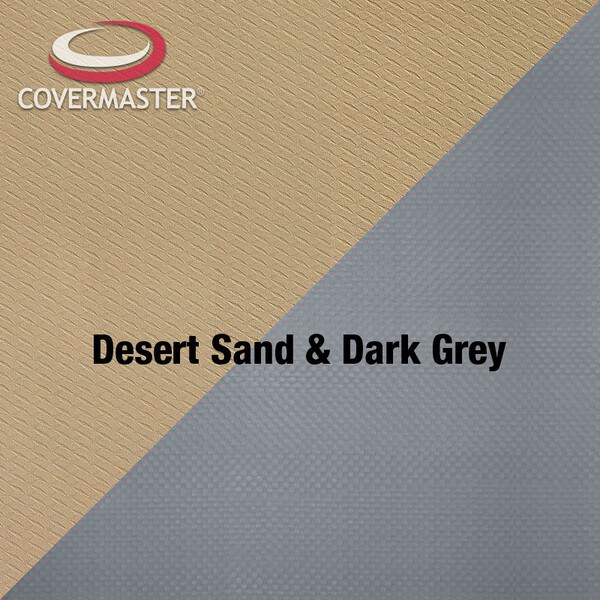

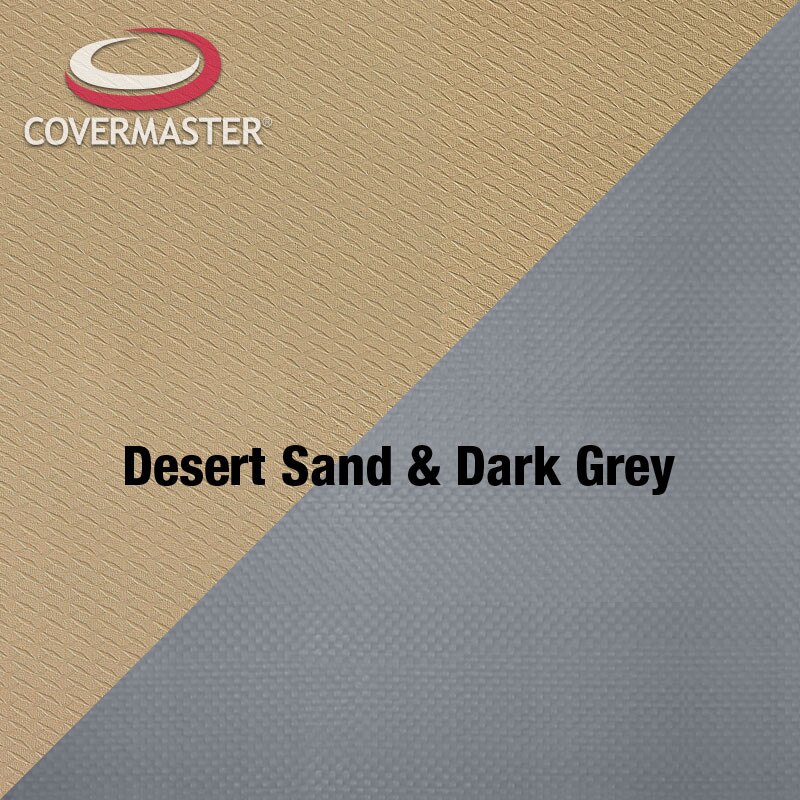

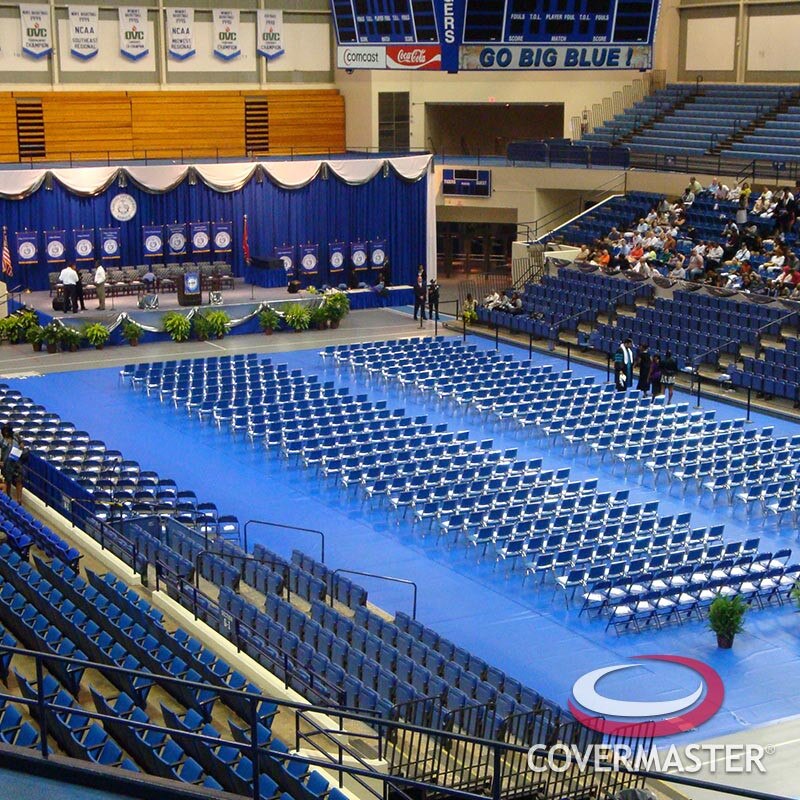

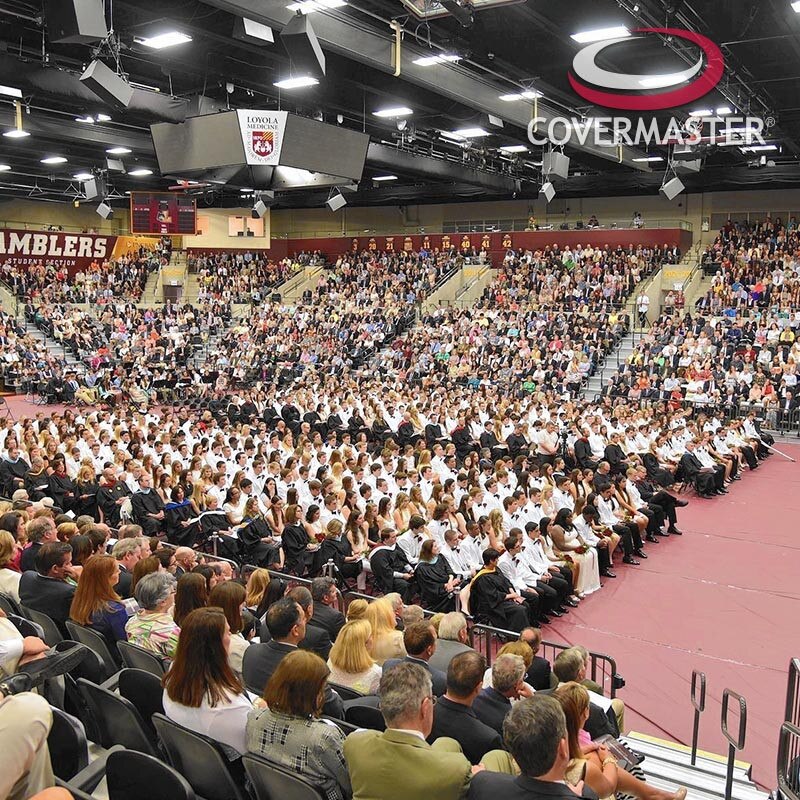

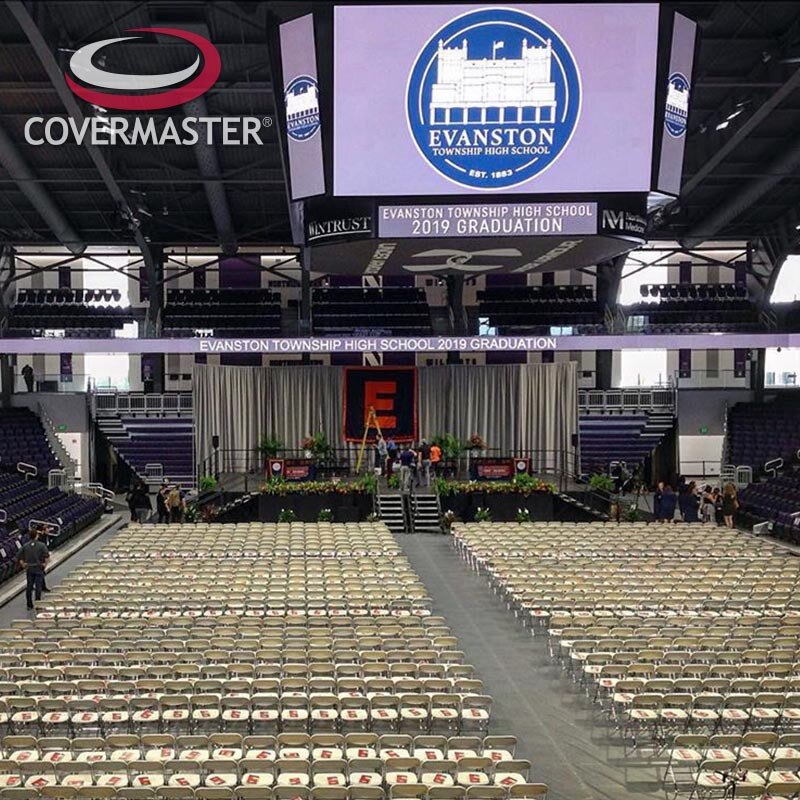

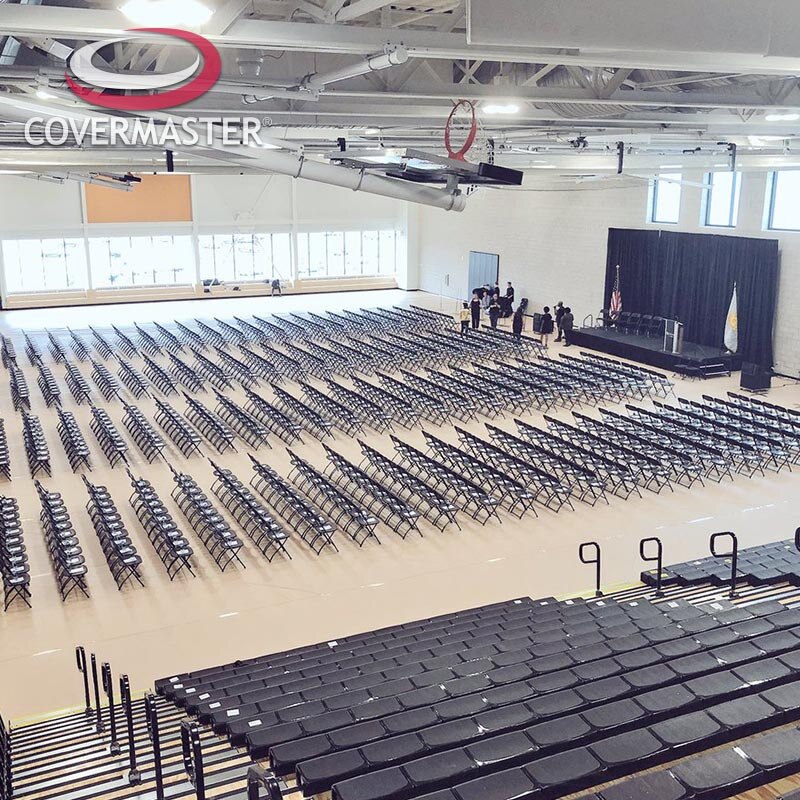

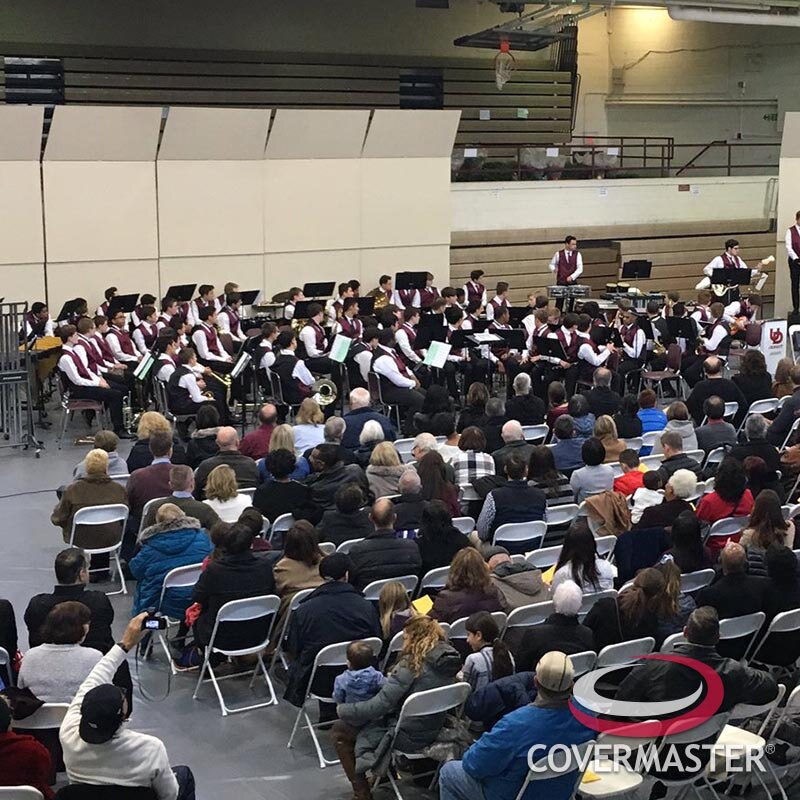

This cover will guard against the rigors of heavy traffic events.  Tables, chairs, even stage & sound setups are a matter of course. The desert sand side, with its anti-slip, diamond tread-plate pattern, is best for graduations and commencements, when decor is more important.  The darker side is ideal for dances and concerts.

Specifications

ULTIMA 4000™ GYM FLOOR COVER MATERIAL

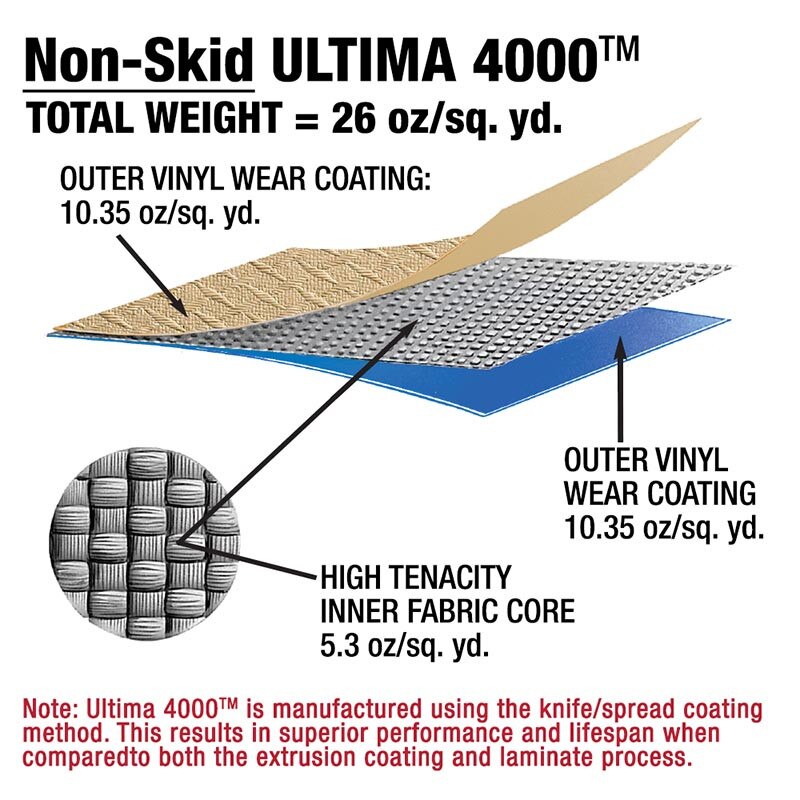

Material Properties
Surface finish*Safety diamond tread plate pattern
Fabric core Single layer, woven polyester
Filament size1500 denier
Core weight5.30 oz/sq. yd.
Weave count19 x 19
CoatingP.V.C., knife coated process, not extrusion coated or laminate process.
Total cover thickness34 mils
Total cover weightNot less than 26 oz/sq. yd.

Mechanical PropertiesValue
Slip-resistant surface* ADA compliant0.61 co-efficient of friction
Tensile strength440 lbs.
Tear strength 120 lbs.
Adhesion35 lbs./inch
Hydrostatic resistance430 lbs./inch

Fire resistance* - Material must meet
these 5 fire resistant standards

California Fire Marshall
Underwriter Fire Protection Test
National Fire Protection Association
Connecticut Fire Marshall Class 1 Rating
State of New York Class A rating
Material* to be Cover-Gard treated to resist odors and germs. Material to be rot and mildew resistant.

Construction
Material should be in sections 10 ft. wide. All seams thermally welded with a minimum 1" lap weld.

Warranty
A 17 year warranty covering materials and workmanship, equivalent to Covermaster Warranty Program, is required.
